Making user interfaces

Vectarine has a built-in UI module to make interfaces, like menus, setting screens, inventories, etc. It is designed to be very customizable to match the feel and style of any game.

Widgets

In Vectarine, a UI is made up of widgets. A widget is a rectangular area of the screen that can draw itself and react to user input.

All widgets have 2 properties: a size and a draw function.

The most basic and powerful widget is the Generic Widget also known as “widget”. You give it the draw function and a size and then you call the draw function to draw it.

const ui = require("@vectarine/ui")
const graphics = require("@vectarine/graphics")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const V2 = vec.V2

-- Create a generic widget of size 1x1 that draws a red square
local redSquareWidget = ui.widget(V2(1, 1), function()
    -- The drawing function of a widget assume that the widget is drawn at (-1, -1)
    graphics.drawRect(V2(-1, -1), V2(1, 1), vec4.RED)
end)

function Update(deltaTime: number)
    -- Clear the screen
    graphics.clear(vec4.BLACK)
    -- Draw the widget
    redSquareWidget:draw()
end

With such a simple example, you might not see the point of using a widget, you could just call the drawing function directly.

However, widgets start to make sense when you compose them together.

Note

For the rest of this guide, we’ll assume that we have the following function to easily create colored boxes.

const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const ui = require("@vectarine/ui")
const graphics = require("@vectarine/graphics")
const V2 = vec.V2
function coloredSquareWidget(size: vec.Vec2, color: vec4.Vec4): ui.Widget
    return ui.widget(size, function()
        graphics.drawRect(V2(-1, -1), size, color)
    end)
end

It will be used to demonstrate how other widgets work.

Rows and Columns

The row widget displays a list of widgets horizontally, while the column widget displays them vertically.

const ui = require("@vectarine/ui")
const graphics = require("@vectarine/graphics")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const V2 = vec.V2

--- Create 3 widgets
local redBox = coloredSquareWidget(V2(0.3, 0.3), vec4.RED)
local greenBox = coloredSquareWidget(V2(0.3, 0.3), vec4.GREEN)
local blueBox = coloredSquareWidget(V2(0.3, 0.3), vec4.BLUE)

--- Create a row with a red, green and blue box, and another row with a blue and red box

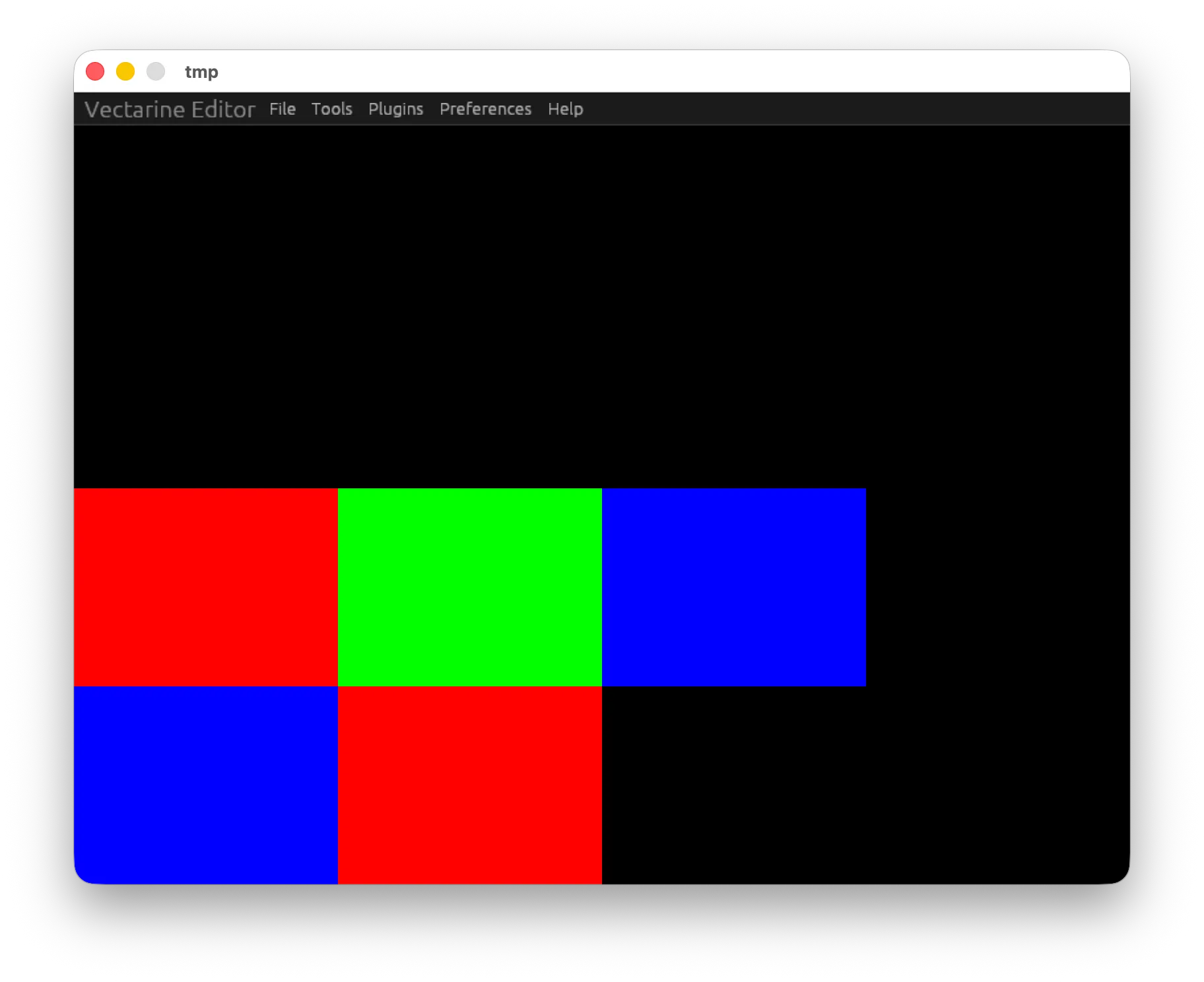

local row1 = ui.row({}, {redBox, greenBox, blueBox})
local row2 = ui.row({}, {blueBox, redBox})

-- Create a column to display the two rows one under the other
local column = ui.column({}, {row1, row2})

function Update(deltaTime: number)
    graphics.clear(vec4.BLACK)
    column:draw()
end

Using rows and columns, we can layout widgets in a flexible way on the screen.

The first argument of the row and column widget are options that allow you to center the widgets, add padding, spacing, etc.

For example, if we want to center the second row and add some spacing between the widgets in the first row, we can do this:

--- Omitted imports and coloredSquareWidget function for brevity
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const ui = require("@vectarine/ui")
const graphics = require("@vectarine/graphics")
const V2 = vec.V2

--- Create 3 widgets
local redBox = coloredSquareWidget(V2(0.5, 0.5), vec4.RED)
local greenBox = coloredSquareWidget(V2(0.5, 0.5), vec4.GREEN)
local blueBox = coloredSquareWidget(V2(0.5, 0.5), vec4.BLUE)

-- Add some space between the squares in the first row

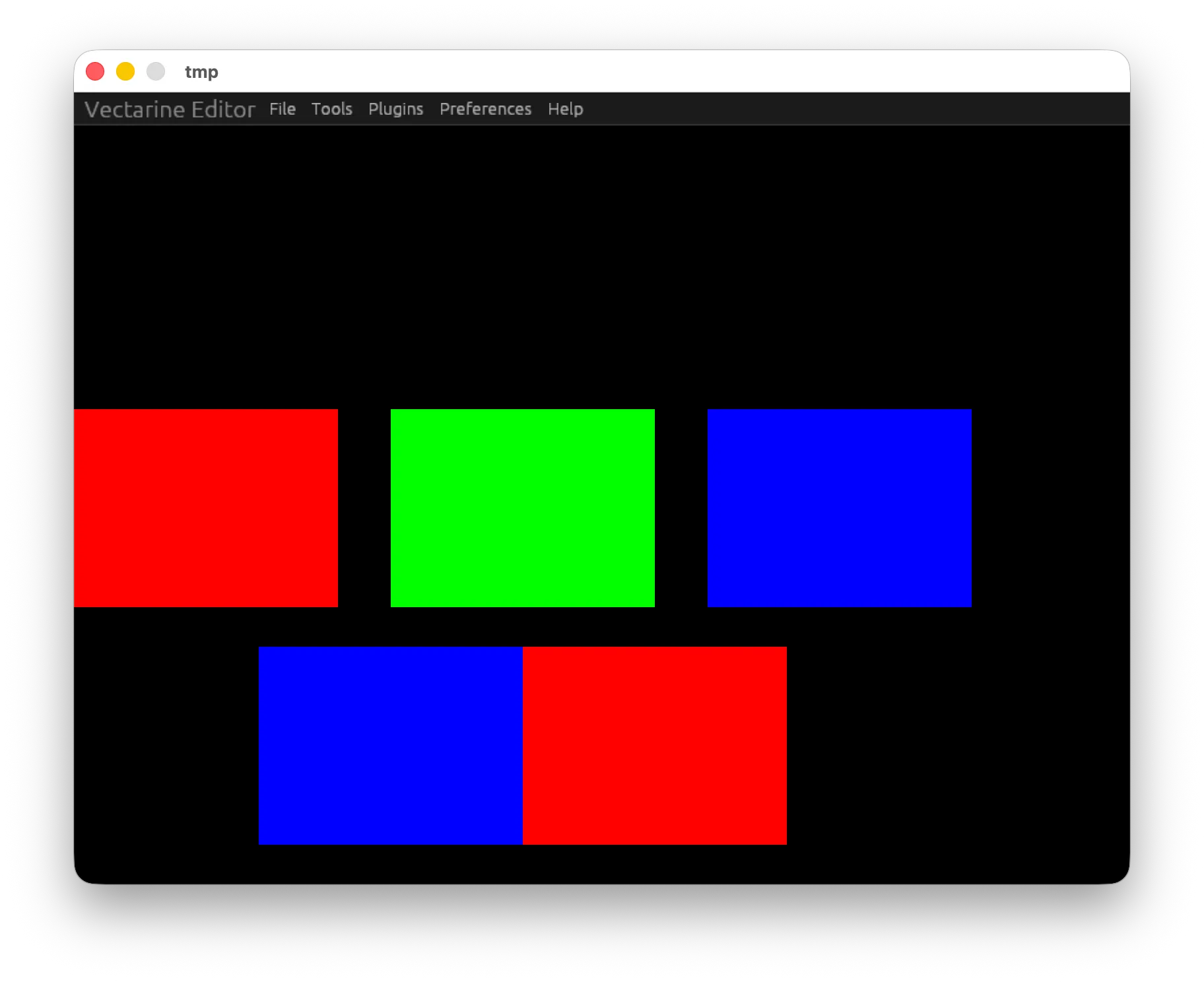

local row1 = ui.row({ gap = 0.1 }, { redBox, greenBox, blueBox })
-- Add some space around the squares in the second row
local row2 = ui.row({ padding = 0.1 }, { blueBox, redBox })

-- Center the rows horizontally.
local column = ui.column({ align = "center" }, { row1, row2 })

function Update(deltaTime: number)
  graphics.clear(vec4.BLACK)
  column:draw()
end

By composing rows and columns, you can make any interface you want.

Displaying text and images

To display text, you can use the text widget. It takes a table with text and a color property and displays it on the screen.

--- Omitted imports
const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const graphics = require("@vectarine/graphics")
const V2 = vec.V2

-- Create a text widget
local firstLine = ui.text("Hello, Vectarine!", { fontSize = 0.1, color = vec4.WHITE })
-- Create another text widget. Instead of passing a string, you can also pass a function that returns a string
-- This is useful to make the text reactive as we'll see later.
local secondLine = ui.text(function() return "Another line of text" end, { fontSize = 0.1, maxWidth = 0.4, maxHeight = 0.1, color = vec4.WHITE })

local column = ui.column({ padding = 0.1 }, { firstLine, secondLine })

function Update(deltaTime: number)
    graphics.clear(vec4.BLACK)
    -- Displays Hello, Vectarine! Another line of text (split on two lines)
    column:draw()
end

You can use the text widget for titles, buttons, or any other text you want to display.

The image widget is similar to the text widget, but it displays an image instead of text.

--- Omitted imports
const loader = require("@vectarine/loader")
const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const V2 = vec.V2

local imageButtonResource = loader.loadImage("textures/button.png")

local imageWidget = ui.image(V2(0.5, 0.5), imageButtonResource, {
    -- This will make the image use 9-slice-scaling with a border of 20% of the size of the image.
    -- This can be use to display buttons at any size without distorting the corners of the image by stretching the middle parts.
    nineSlicing = 0.2
})

You can pass options to the image widget to preserve the aspect ratio, set a color tint, or use 9-slice-scaling.

Stacking widgets

Often you want to display some text above an image, for example a button with a background and some text. More generally, you might want to display two widgets stacked on top of each other. For this, you can use the stack widget.

--- We assume that the imageButtonResource exists and the required modules are imported
const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const graphics = require("@vectarine/graphics")
const V2 = vec.V2

local buttonBackground = ui.image(V2(0.5, 0.5), imageButtonResource, { nineSlicing = 0.2 })
local buttonText = ui.text("Click me", {color = vec4.WHITE})

-- Widgets in a stack are drawn in order, from first to last, so the button text needs to be the last in the list
-- to be drawn on top of the button background.
local button = ui.stack({}, { buttonBackground, buttonText })

function Update(deltaTime: number)
    graphics.clear(vec4.BLACK)
    button:draw()
end

If all of the element of the stack do not have the same size, you can use the “alignX” and “alignY” options to choose the relative alignment of the widgets in the stack.

-- If the text is smaller than the button, the text will be centered vertically on the button, but aligned to the left.
local stack = Ui.stack({ alignX = "start", alignY = "center" }, { buttonBackground, buttonText })

Tip

Creating functions that return widgets can be very useful to create reusable widgets. For example, instead of recreating a button from scratch, you can create a createButton function.

const vec = require("@vectarine/vec")
const ui = require("@vectarine/ui")
const vec4 = require("@vectarine/vec4")
const V2 = vec.V2
function createButton(text: string, size: vec.Vec2): ui.Widget
    -- All our buttons are text with an image and 0.1 units of padding around the text
    local buttonBackground = ui.image(size + V2(0.1, 0.2), imageButtonResource, { nineSlicing = 0.2 })
    local buttonText = ui.text(text, {maxWidth = size.x - 0.2, maxHeight = size.y - 0.2, fontSize = size.y - 0.2, align = "center", color = vec4.WHITE})
    return ui.stack({ alignX = "center", alignY = "center" }, { buttonBackground, buttonText })
end

Reacting to user input

User interfaces are not very useful if you can’t interact with them. To allow interaction, you can use a generic widget:

--- Omitted imports
const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const graphics = require("@vectarine/graphics")
const V2 = vec.V2

local hoverableWidget = ui.widget(V2(0.5, 0.5), function(eventState: ui.EventState)
    -- The event state contains information about user interaction with the widget:
    -- If the mouse is clicking it, hovering it, etc.

    -- In this example, we change the color of the widget to red when the mouse is hovering it.
    local color = if eventState.isMouseInside then vec4.RED else vec4.GRAY
    graphics.drawRect(V2(-1, -1), V2(0.5, 0.5), color)
end)

Because widgets can be composed, you can add interactions to existing widgets:

-- Let's assume that you have an existing widget defined somewhere.
const ui = require("@vectarine/ui")
const graphics = require("@vectarine/graphics")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const V2 = vec.V2
local existingWidget = ...

local interactiveWidget = ui.widget(existingWidget.size(), function(eventState: ui.EventState)
    -- Add a blue background when the mouse is down on the widget
    if eventState.isMouseDown then
        graphics.drawRect(V2(-1, -1), existingWidget.size(), vec4.BLUE, 0.05)
    end
    -- Draw the existing widget
    existingWidget:draw()
end)

As changing the text of a text widget is very common, the text widget has a built-in way to react to user input:

const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const V2 = vec.V2
local textWidget = ui.text(
    function(eventState: ui.EventState)
        return if eventState.isMouseInside then "Hovering!" else "Not hovering" end
    end,
    { fontSize = 0.1, color = vec4.WHITE }
)

You can also pass a function as the color to change the color of the text when the mouse is hovering it.

Conditional rendering and dynamic UIs

Vectarine widgets are immutable. This means that once they are created, they cannot be changed. For example, you cannot add a new child to a row or change its alignement properties. If you want to do that, you need to create a new widget and draw it instead of the old one.

Vectarine is designed this way to reduce bugs and make it easier to think about UIs.

You can think of a UI as a function that takes some data (your game state) and returns a widget tree that gets drawn.

If you need conditional rendering, you can use an if statement inside a generic widget. However, you need to pass information to the drawing function of the widget to be able to create this condition:

const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const V2 = vec.V2

local shopWidget = createShopWidget()
local inventoryWidget = createInventoryWidget()

local myWidget = ui.widget(V2(1, 1), function(eventState: ui.EventState)
    -- We want access to the game state here, but we need to be inside the drawUi function to do that!
    if gameState.insideShop then -- Error: gameState is not defined
        shopWidget:draw()
    else
        inventoryWidget:draw()
    end
end)

function drawUi(gameState)
    myWidget:draw()
end

To solve this issue, the draw function takes an extra argument that can be anything:

const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const V2 = vec.V2

local shopWidget = createShopWidget()
local inventoryWidget = createInventoryWidget()

local myWidget = ui.widget(V2(1, 1), function(eventState: ui.EventState, gameState: GameState)
    -- We add gamestate as an extra argument
    if gameState.insideShop then
        -- We propage the state to the children that might need it.
        shopWidget:draw(gameState)
    else
        inventoryWidget:draw(gameState)
    end

    if gameState.refreshShop then
        -- You can rebuild widgets on the fly if needed.
        shopWidget = createShopWidget()
    end
end)

-- As myWidget takes a gameState argument, its type is Widget<GameState>.
-- This allows you to still have autocompletion inside the draw function of generic widgets.

function drawUi(gameState: GameState)
    myWidget:draw(gameState)
end

The extra argument is propagated to all the children of row, column and stack widgets, so you can access it anywhere (inside text widgets too!).

Debugging UI

You can use the Ui.withDebugOutline function to draw a red transparent outline around widgets when they are hovered. This can help you understand what widgets are taking space and debug issues with layout and alignment.

const ui = require("@vectarine/ui")
ui.withDebugOutline(function()
    myWidget:draw(gameState)
end)

Advanced example: Animating the size of a widget on hover

Let’s say that we want to increase the size of a widget when the mouse is hovering it. Let’s see how to do so.

const persist = require("@vectarine/persist")
const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const V2 = vec.V2
const graphics = require("@vectarine/graphics")

-- The base widget that we want to animate
local baseWidget = ui.stack({ alignX = "center", alignY = "center" }, {
  ui.widget(V2(0.6, 0.1), function()
    graphics.drawRect(V2(-1, -1), V2(0.6, 0.1), vec4.RED)
  end),
    ui.text("Hover me!", { color = vec4.WHITE, fontSize = 0.1 }),
})

-- In a real project, this will probably be part of a larger game state.
local animationState = persist.onReload({ scale = 1 }, "animationState")

local baseWidgetSize = baseWidget:size()

-- Animated widget will draw the base widget with a padding of 0.05 and will be responsible for animating
-- its size when the mouse is hovering it.
local padding = 0.05
local animatedWidget = ui.widget(baseWidgetSize + V2(padding * 2, padding * 2), function(eventState: ui.EventState)
  -- If the mouse is hovering the widget, we increase the scale, otherwise we decrease it.
  if eventState.isMouseInside then
    animationState.scale = math.min(animationState.scale + 0.01, 1.5)
  else
    animationState.scale = math.max(animationState.scale - 0.01, 1)
  end

  -- Widget are like any other drawn objects and can be transformed with Graphics.withTransformation.
  -- We translate here so that the rescale is centered on the base widget.
  local translation = (V2(-1, -1) + baseWidgetSize:scale(0.5)):scale(1 - animationState.scale) + V2(padding, padding)
  graphics.withTransformation(
    { scale = V2(animationState.scale, animationState.scale), translation = translation },
    function()
      baseWidget:draw()
    end
  )
end)

function Update(deltaTime: number)
  graphics.clear(vec4.BLACK)
    -- Remember to draw the animated widget instead of the base widget.
  animatedWidget:draw()
end

Wrapping up

Vectarine has more widgets including a scrollable area and sliders, but they all work the same way: you pass options, children and you draw them.

For example, here is how to create a slider widget and display its value:

const graphics = require("@vectarine/graphics")
const ui = require("@vectarine/ui")
const vec = require("@vectarine/vec")
const vec4 = require("@vectarine/vec4")
const V2 = vec.V2

function coloredSquareWidget(size: vec.Vec2, color: vec4.Vec4): ui.Widget
  return ui.widget(size, function()
    graphics.drawRect(V2(-1, -1), size, color)
  end)
end

local sliderValue = 0

local slider = ui.slider(V2(0.5, 0.1), {
  min = 0,
  max = 1,
  initialValue = 0,
  onChange = function(newValue)
    sliderValue = newValue
  end,
}, coloredSquareWidget(V2(0.5, 0.1), vec4.BLUE), coloredSquareWidget(V2(0.1, 0.1), vec4.RED))

local firstLine = ui.text("Hello, Vectarine!", { color = vec4.WHITE })
local secondLine = ui.text(function()
  return "Slider = " .. tostring(math.round(sliderValue * 100) / 100)
end, { color = vec4.WHITE })

local column = ui.column({ padding = 0.1 }, { firstLine, secondLine, slider })

function Update(deltaTime: number)
  graphics.clear(vec4.BLACK)
  column:draw()
end

Remember that a widget = a size + a draw function.

If you need to create a custom widget, use a generic widget and compose it with existing widgets or simply draw the custom graphics you need inside.

Have fun making interfaces with Vectarine!
